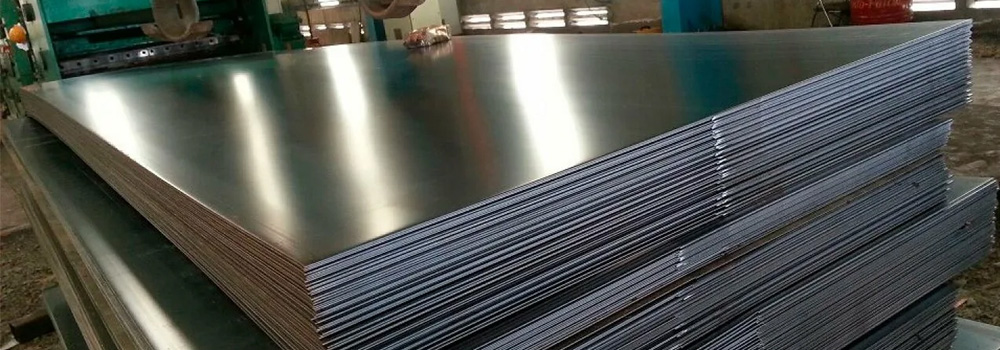

Stainless Steel 317/317L Sheets & Plates

  • Home
  • Stainless Steel 317/317L Sheets & Plates

Buy Large Or Small Quantity Stainless Steel 317 Sheet, SS 317L Shim Sheets, Stainless Steel S31703 Plates, 317/317L Stainless Steel Plates, UNS S31700 Sheets, 317L Stainless Steel Perforated Sheet Supplier in Mumbai, India.

Stainless Steel 1.4438 Cold Rolled Plates, ASTM A240 SS 317 Hot Rolled Plate Manufacturer, Werkstoff Nr. 1.4449 Sheets, SS 317 Coils, Stainless Steel 317 Strip, Stainless Steel 317 Chequered Plate, 317L SS Foils Manufacturer in India.

Stainless Steel 317/317L Sheets & Plates

Jade Special Metals is a known exporter and trader of SS 317 / 317L Sheets & Plates, which are widely used for commercial and industrial purposes. Stainless Steel 317 Sheets offer outstanding corrosion resistance, strength and superior formability. However, by means of excellent corrosion resistance, formability and moderate strength, Stainless Steel 317 Plates signify the most extensively used procedure of titanium. Stainless Steel 317 Coils is the most usually used and extensively obtainable grade of unalloyed steel. Stainless Steel 317L Sheets is often used in Aerospace industry, Chemical and marine applications, Electroplating industry, Medical industry, and more. Stainless Steel 317L Plates has a microstructure which underwrites to their high resistance and high strength to stress corrosion cracking. Stainless Steel 317L Coils has outstanding corrosion resistance to a varied range of media, by means of exceptional crevice corrosion and resistance to pitting in seawater and other chloride comprising atmospheres. Stainless Steel UNS S31700 Sheets offers great features because of its high molybdenum, nitrogen and chromium level, through Critical Pitting Temperature beyond 50 Deg C. UNS S31703 Plates, Stainless Steel 321 Sheets shows soaring resistance to chloride-rich and pitting corrosion atmospheres. Some of the excellent features of these 317 Stainless Steel Sheets & Plates are: Durable, Long functional life, Reliable performance, and more. These 317L Stainless Steel Sheets & Plates is well-tested on varied parameters thereby ensuring its high quality and durable standards.

Stainless Steel 317/317L Sheets & Plates Specifications

Standard : ASTM A240 / ASME SA240
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness : 4 mm To 100 mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface : 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Form : Sheets, Plates, Coils, Slatting Coils, Perforated Coils
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

“Contact Jade Special Metals today with your requirement for 317 Stainless Steel Sheet and 317L SS Plates. We assure you of the best quote.

317 / 317L Stainless Steel Sheets & Plates Equivalent Standard Grade

STANDARD WERKSTOFF NR. UNS JIS
SS 317 1.4449 S31700 SUS 317
SS 317L 1.4438 S31703 SUS 317L

Stainless Steel 317 / 317L Sheets & Plates Inventory

Perforated Sheets
Stainless Steel 317/317L Perforated Sheets
Chequred Plates
Stainless Steel 317/317L Chequred Plates
Shim Sheets
Stainless Steel 317/317L Shim Sheets
Coils
Stainless Steel 317/317L Coils
Foils
Stainless Steel 317/317L Foils
Strips
Stainless Steel 317/317L Strips

Stainless Steel 317/317L Sheets & Plates Chemical Composition

Grade C Mn Si P S Ni Fe Cr Mo
SS 317 0.08 max 2 max 1.0 max 0.045 max 0.030 max 11.0-15.0 57.845 min 18 – 20 3.0-4.0
SS 317L 0.035 max 2 max 1.0 max 0.045 max 0.030 max 11.0-15.0 57.89 min 18 – 20 3.0-4.0

SS 317/317L Sheets & Plates Mechanical Properties

Density Melting Point Elongation Tensile Strength Yield Strength (0.2%Offset)
8.0 g/cm3 1400 °C (2550 °F) 35 % Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205

Available Stock of ASTM A240 Stainless Steel 317 / 317L Sheets & Plates

  • Stainless Steel 317 Shim Sheets
  • SS 317L Circles
  • 317 Stainless Steel Plain Sheets
  • 317 Stainless Steel Foils
  • UNS S31700 Polished Plates
  • WERKSTOFF NR. 1.4449 Perforated Sheet
  • ASTM A240 317L Stainless Steel Sheet
  • Stainless Steel 317 Sheet Cut To Size
  • Stainless Steel 317L Sheet #4 Finish
  • 317 SS Cold Rolled Plates
  • ASTM A240 Type 317 Plate 2B Finish
  • 317L Stainless Steel Plate Mill Finish
  • UNS S31703 Plates
  • WERKSTOFF NR. 1.4438 Shim Sheets
  • ASTM A240 AISI 317L Coils
  • ASTM A240 317L SS Slitting Coil
  • Stainless Steel 317L CR Sheet
  • Stainless Steel 317 Strips
  • 317L Stainless Steel #4 Finish Sheets
  • 317 Stainless Steel Foils
  • UNS S31700 Sheet Supplier
  • WERKSTOFF NR. 1.4449 HR Plates
  • 317L Austenitic Stainless Steel Sheet
  • SS 317L #8 Finish Plates
  • SS 317 Plate Manufacturer
  • 317L Stainless Steel Laser Cutting Sheet
  • Jindal Stainless Steel 317 Sheets
  • 317 Stainless Steel Sheets Distributor
  • UNS S31703 Plates Exporter
  • WERKSTOFF NR. 1.4438 CR Sheets
  • ASTM A240 Type 317 Sheet and Plate
  • ASTM A240 317L Stainless Steel Plate
  • 1.4438 Stainless Steel Perforated Sheet
  • SS 317L 2B Finish Plates Stockist
  • AISI 317 Sheets
  • Stainless Steel 317L Sheets Price

Applications of Stainless Steel 317 / 317L Sheets & Plates

  • Pipeline Engineering
  • Marine Industry
  • Chemical Industry
  • Oil & gas industry
  • Mechanical Engineering
  • Plant Engineering
  • Petrochemical Industry
  • Power Industry
  • Aerospace
  • Food Processing Industry
Industry

We maintain ready stock of 317 Stainless Steel Sheet, SS 317 Plates, SS 317L Coils, 317 SS Shims, Stainless Steel 317 Strips and 317L SS Foils. Get in touch with us with your requirement for quick quote.
